12G-SDI Isolator Chip
(Galvanic Isolation)
World's first reflowable 12G-SDI Isolator Chips solution
Specifications
| Parameters | Values / Descriptions |
|---|---|
| SDI signals |
12G-SDI ST-2082-1 6G-SDI ST-2081-1 3G-SDI ST-424 HD-SDI ST-292 |
| Isolation | 5000V RMS for 1 minute |
| Creepage / Clearance | 8.1mm / 8.1mm |
| MOP | 2MOOP / 2MOPP IEC60601-1 compliant, 250V-AC |
| Leakage |
<0.032uA Condition: 264V-AC, at 60Hz Type B/BF/CF Applied Parts |
| Operating temperature | ~85degree |
| Package size | 8.0 x 16.5 x 3.6 mm SMT, reflowable |
TUV & cTUVus Certifications (Pending)
Certificate No.: R 50604070
Certificate No.: CU 50604072

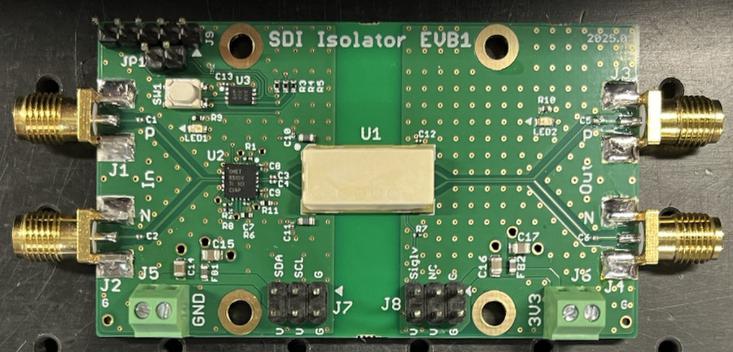

12G-SDI Isolator Evaluation Board
- Board overview
* Schematic, BOM and layout files for PCB design available per request.
Order Information
| Item | Picture | P/N | Status |
|---|---|---|---|
| 12G-SDI Isolator Chip | |
APISSDIA | Coming soon! |
| Preliminary 12G-SDI Isolator EVB |
|
SDI-ISO-EVB1 | Coming soon! |
Technical Resources
We provide the following technical documents to facilitate our customers' design.- Schematic of the isolation board
- Layout pictures for each layer of the isolation board
- Gerber files of the isolation board
- BOM List of the isolation board
- 3D data of the isolator chip
Contact Info
For more information,- Technical documents
- Quotation Request
- etc.
